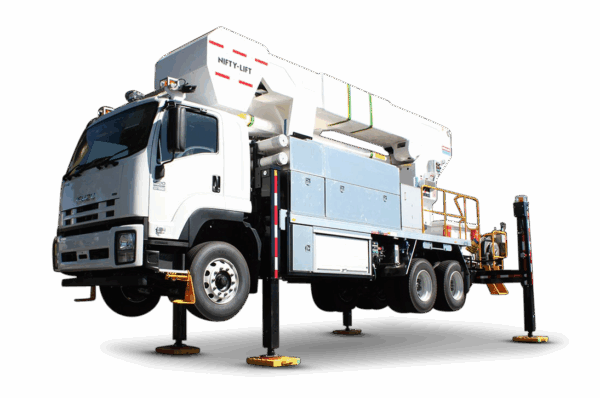

15m – Nifty Lift NL140RKT

Working height: 15.0m (49.2 ft)*

Basket floor height: 13.0m (42.6 ft)*

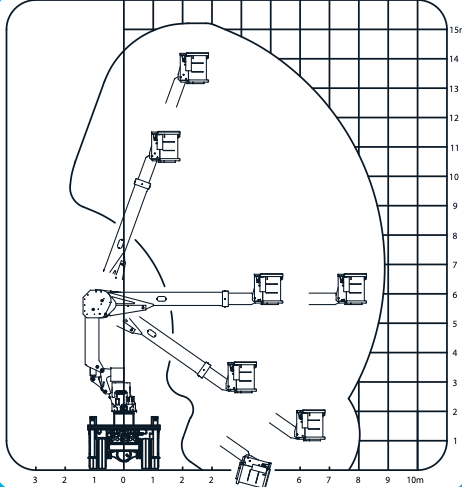

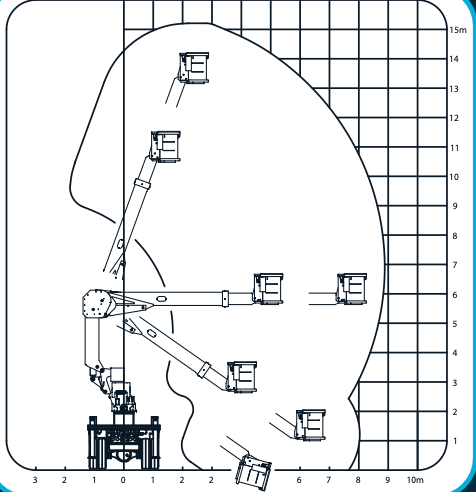

Maximum reach: 8.9m (29.2 ft)

Reach to front of basket: 8.2m (26.9 ft)

Platform capacity: 250kg (standard), 325kg (optional)

Telescopic extension: 2.9m

Slew: 360° continuous via ball-bearing slew ring

Zero tail swing: Yes

Platform type: Double-boom articulated with telescopic upper boom

Travelling height: 3.5m (11.5 ft)*

Radius of operation: 8.2m at 4.5m platform height

Basket options:

• 1200 × 600 × 1000mm

• 1500 × 700 × 1000mm

*Values dependent on truck chassis height

Control system:

• Proportional electric, radio remote, or optional pilot controls

• Dual radio remote control (optional)

Emergency systems:

• Base controls at turret

• Emergency hand pump standard

• Emergency power via accumulator or optional electric power pack

Hydraulic system:

• Fully proportional, independently controlled

• Main hydraulic tank: 130L with drain valve and temp/level gauge

• Closed or open circuit available

• All cylinders and slew motor with holding valves

• Hydraulic tool circuit to basket and/or tray

Electrical system:

• 12V or 24V depending on cab chassis

• PLC or CANbus control

• Auxiliary batteries and charging systems available

Insulation:

• Complies with AS1418.10

• Optional:

  • 33kV FRP insert in lower boom

  • 66kV insert in upper boom

  • 132kV total insulation

Interlocks:

• Boom and stabiliser operation interlocks

• Optional: limited slew, basket and boom tie-downs, out-of-level shutdown

Warning indicators:
System on, PTO engaged, boom/stabilisers not stowed, system charging, accumulator charged, ground sense, access steps/lockers open, hydraulic tools active, filters clogged

Hino Truck with Diesel engine
