22m – PB 2210
Description

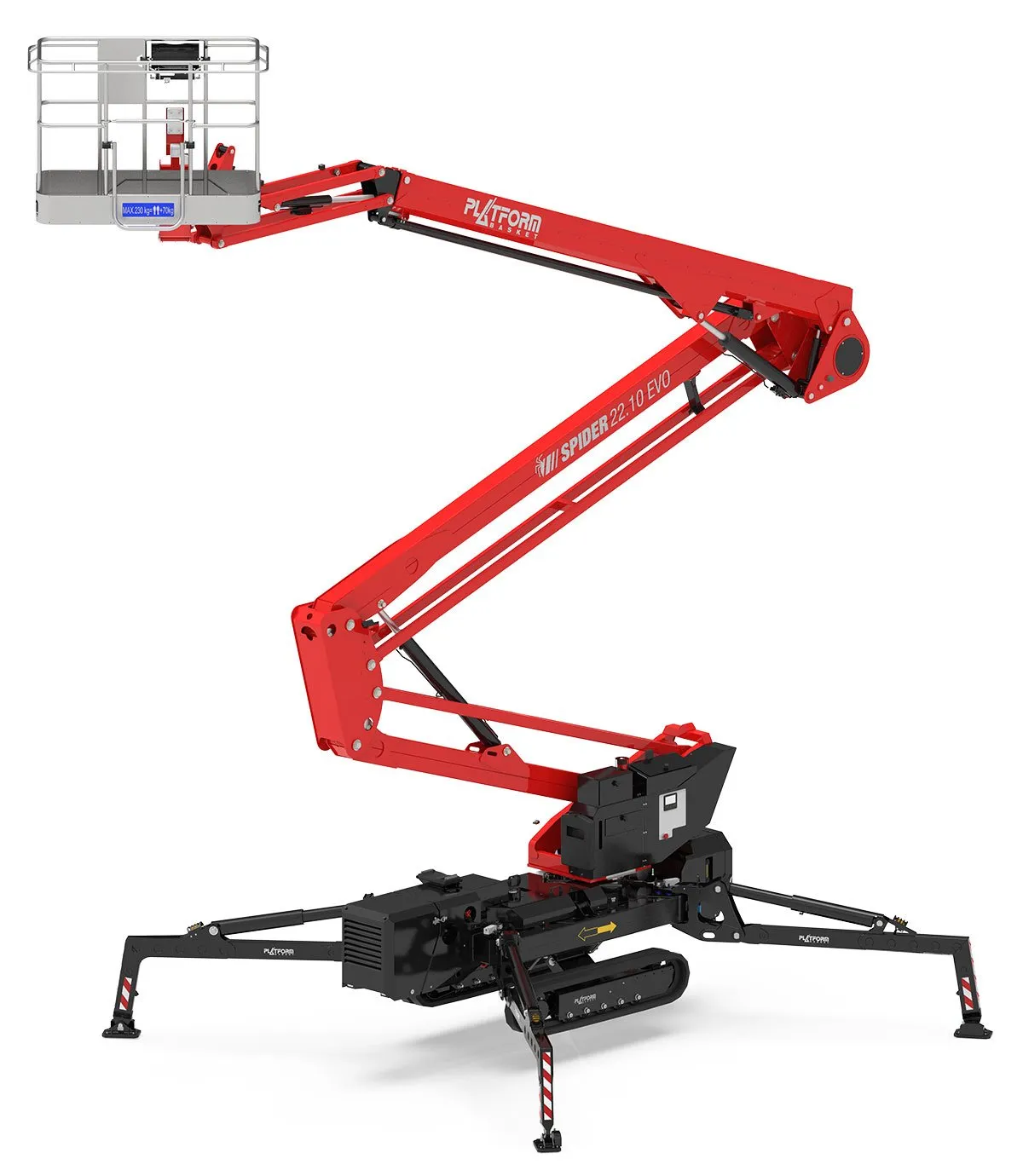

The Spider 22.10 is a lightweight, high-performance tracked aerial platform built for serious reach and compact maneuverability. With a working height of 21.7 metres and 10.3 metres of side outreach, it delivers exceptional versatility for both indoor and outdoor work environments.
Designed for transportability and user-friendliness, the 22.10 features triple stabilisation configurations, automatic outreach adjustment, and intuitive radio remote controls. It excels in confined spaces thanks to its multi-width stabiliser system and narrow travel width of just 980mm.
Available in standard diesel, full-electric, or hybrid (ED) models, the platform is powered by a Kubota Z602 engine and/or electric drive, with lead acid or lithium-ion battery options. The basket includes full air, water, and 220V outlets, and can be swapped for a winch for added jobsite flexibility.
Ideal for building maintenance, tree work, or utility access, the Spider 22.10 combines height, stability, and smart tech in one agile package — all while remaining ultra-light and easy to transport.
get an instant quote
Specifications
Max working height: 20.7m (67.9 ft)
Max platform height: 18.7m (61.4 ft)
Max horizontal outreach: 10.6m (34.8 ft)
Up and over height: 8.2m (26.9 ft)
Basket dimensions: 1.4m × 0.7m × 1.1m
Basket capacity:
-
150kg: 1 operator
-
200kg: 2 operators
-
250kg: 2 operators (max)
Basket rotation: ±75°
Jib working angle: 116°
Column rotation: ±180° (420° optional)
Stabilization ground slope: Up to 18°
Stabilization height: 0.63m
Open outriggers footprint: 2.9m × 2.9m
Max working height: 21.70m (71.2 ft)
Platform floor height: 19.70m (64.6 ft)
Max side outreach: 10.30m (33.8 ft)
Basket dimensions: 1.50m × 0.70m
Basket capacity: 230kg (507 lbs)
Basket rotation: ±90°
Tower rotation: 365°
Stabilisation setup:
-
Triple stabilisation options
-
Multi-width stabiliser settings
-
Wide footprint: 3.87m × 3.94m
-
Narrow footprint: 2.57m × 5.05m
Machine length (closed with basket): 5.97m
Machine length (without basket): 5.28m
Minimum width (closed): 0.98m
Minimum height (closed): 2.06m
Maximum horizontal inclination: 16° (29%)
Maximum side inclination: 17° (31%)
Max travel speed:
-
STD/ED: 1.5 km/h
-
E (Electric only): 0.8 km/h
Operating weight:
-
STD: 2,980kg
-
E: 3,260kg
-
ED: 3,260kg
Ground pressure (stowed):
-
STD: 2.94 kN/m²
-
E/ED: 3.21 kN/m²
Ground pressure (on stabilisers):
-
STD: 1.91 kN/m²
-
E/ED: 2.09 kN/m²
Max point load on one stabiliser:
-
STD: 21 kN
-
E/ED: 23 kN
Optional interchangeable winch in place of basket: Yes
Engine options
-
STD/ED: Z602 Kubota diesel engine – 14 HP @ 3600 rpm
Electric motor
-
All versions: 220V AC motor – 3 CV / 2.2 kW
-
ED: 24 Vdc motor – 7.4 CV / 5.5 kW
Traction battery capacity
-
Lead acid: 1×210Ah (E), 2×210Ah (ED)
-
Lithium-ion: 300Ah (E), 400Ah (ED)
Battery charger options
-
Lead acid: 45Ah
-
Lithium-ion: 100/50Ah
Control system
-
Radio remote control (standard)
-
Automatic outreach adjustment
-
Full air, water, and 220V outlets in basket
