13M Spider Lift – PB 1380 (Platform Basket)
Description

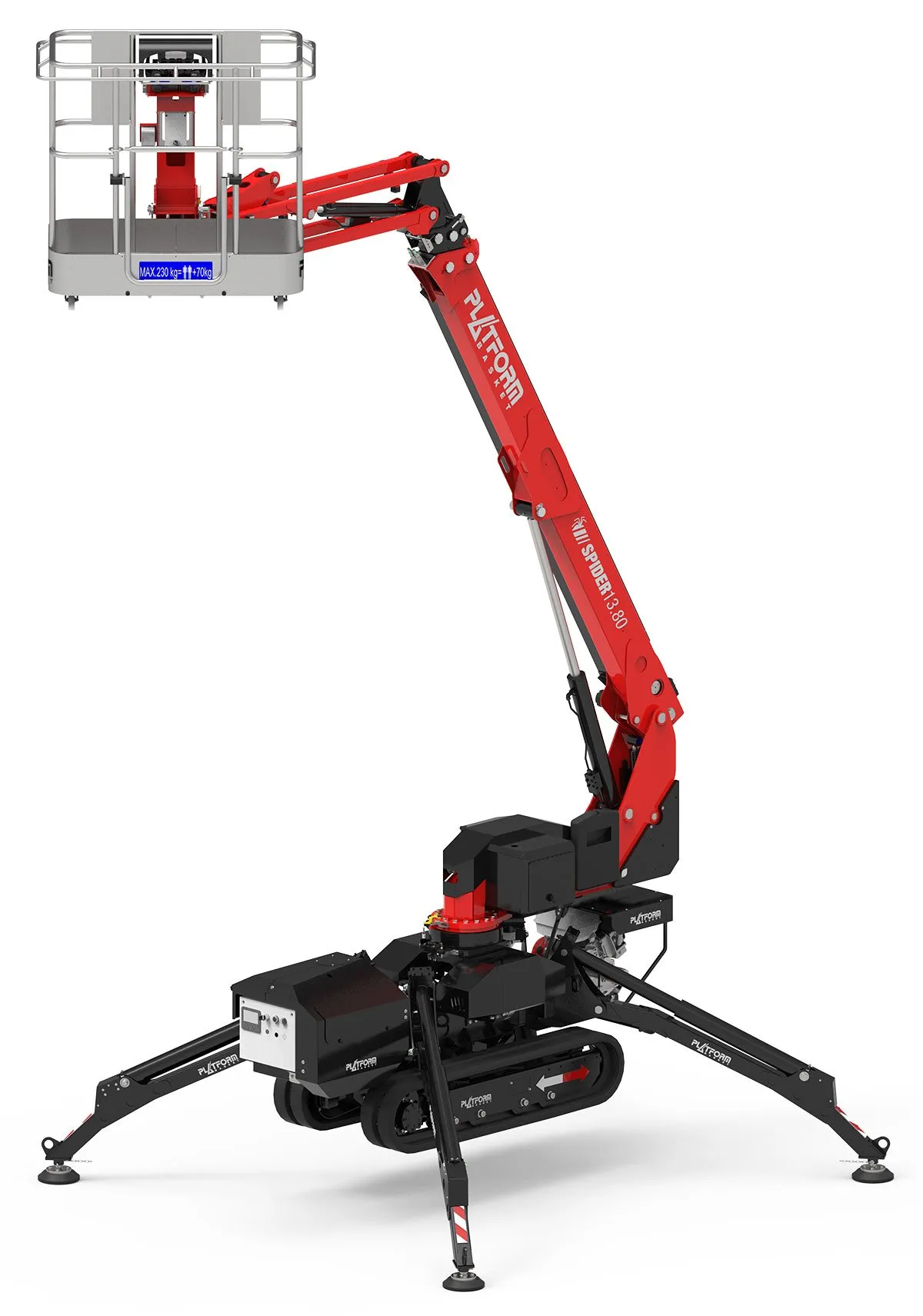

The Spider 13.80 is a compact, self-propelled tracked aerial platform designed for ultimate accessibility and control in tight or uneven environments. With a working height of 13.4 metres and an outreach of 7.8 metres, this lightweight lift delivers unrivalled stability and versatility at high altitudes.
Built for agility, it features variable-width crawler tracks, zero tail swing, and a quick-detach basket system, making it easy to transport and deploy even in the most constrained work zones. Multiple powertrain configurations — including petrol, electric, and hybrid diesel-electric — allow the Spider 13.80 to adapt to a wide range of jobsite demands.
Protected by full-body metal covers and enhanced with intuitive onboard controls, it’s ideal for high-reach tasks that require safe, efficient elevation. Standard features include dual-speed drive, 230V and air/water basket outlets, and optional counterweights for extended outreach. Whether you need reliable performance indoors or rugged mobility outdoors, the Spider 13.80 is engineered for both.
get an instant quote
Specifications
Working height: 13.40m (43.9 ft)
Floor height: 11.40m (37.4 ft)
Maximum side outreach: 7.80m (25.6 ft)
Tower rotation angle: 360°
Basket dimensions: 1.20m × 0.70m
Basket rotation: Not declared (ND)
Basket capacity: 200kg (441 lbs)
Maximum horizontal inclination: 16° / 29%
Maximum side inclination: 12° / 21%
Drive speed:
-
STD: 3.50 km/h
-
E ED: 1.70 km/h
Stabilisation footprint: 2.80m × 2.80m
Ultra-compact and zero tail swing: Yes
Quick-detach, interchangeable basket: Included
Operating weight:
-
STD: 1500kg
-
E: 1500kg
-
ED: 1650kg
Machine length (basket disassembled): 3.55m (4.20m with basket)
Minimum closed width: 0.78m
Minimum closed height: 1.98m
Ground pressure (stowed): 3.06 kN/m²
Ground pressure (on stabilizers): 2.26 kN/m²
Max point load on one stabilizer: Not specified
Chassis: Tracked, variable width for agility and terrain versatility
Metal protection: Full body metal covers
Engine options:
-
STD: Honda GX270 petrol – 8 HP @ 3600 rpm
-
E: 220 Vac electric motor – 3 CV / 2.2 kW
-
ED:
-
HATZ 1B30 diesel – 5.4 HP @ 3600 rpm
-
24 Vdc electric motor – 5.5 CV / 4.0 kW
-
Traction battery options (ED only):
-
24V Lead Acid – 150Ah or 200Ah
-
24V Lithium Ion – 150Ah or 200Ah
Battery charger (ED only):
-
Lead acid: 45Ah
-
Lithium ion: 100/50Ah
Additional features:
-
Air/water and 230V AC outlets available in the basket
-
Standard double drive speed
-
Fully metal-enclosed components for fall protection
-
Simple and intuitive onboard controls
