10m – Athena 1090
Description

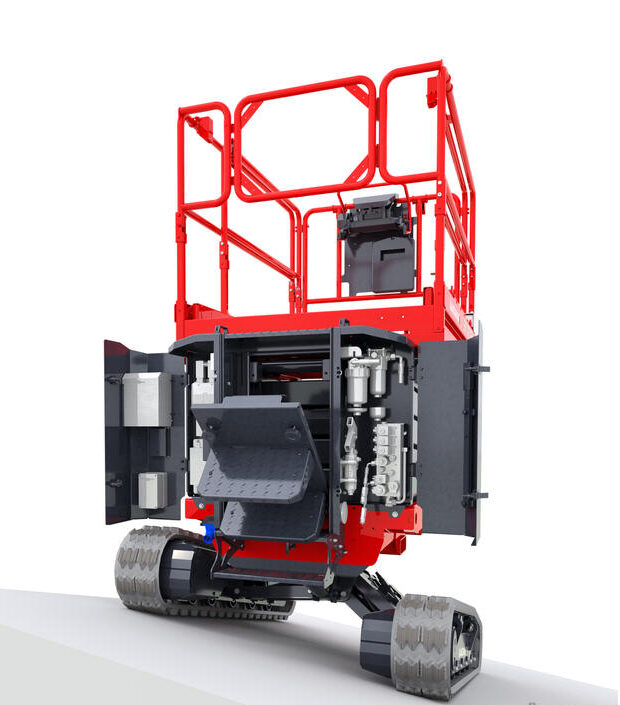

The Almac 1090-BL EVO is a compact tracked mini-scissor lift designed for safe and efficient operation at heights up to 10 metres, even on uneven or sloped terrain. Powered by a dependable Kubota diesel engine, it features Almac’s advanced bi-leveling technology, offering automatic basket and chassis levelling for superior stability. With dynamic and proactive levelling systems, a high-speed option, and easy manoeuvrability in tight spaces, the 1090-BL EVO is built for productivity and control in demanding environments.
get an instant quote
Specifications
Max working height: 10.0m (32.8 ft)
Basket floor height: 8.0m (26.2 ft)
Max moving height: 7.0m (23.0 ft)
Basket capacity: 300kg (661 lbs) – 2 operators
Gradeability: 25°
Side slope tolerance: 21°
Bi-leveling system: Included (automatic basket and longitudinal levelling)
Dynamic Levelling System: Yes
Pro-Active Levelling System: Yes
Easy-Drive system: Yes (for tight maneuvering)
High-speed travel option: Available
Compliance: EN 280: 2015
Length: 2.26 m (7.4 ft)
Width: 1.46 m to 1.64 m (4.8 – 5.4 ft adjustable)
Height (with folded railings): 2.05 m (6.7 ft)
Optional low-profile height: 1.89 m (6.2 ft)
Machine weight: 2,830kg (6,239 lbs)
Length: 2.26m (7.4 ft)
Width: 1.46m to 1.64m (4.8 – 5.4 ft adjustable)
Height with folded railings: 2.05m (6.7 ft)
Optional low-profile height: 1.89m (6.2 ft)
Drive type: Tracked
Compact design for confined access: Yes
Fuel type: Diesel
Engine: Kubota Z602 (12.5 kW)
Optional 220V 1 kW electric generator: Available
Optional 220V 2.2 kW electric pump: Available
Optional anti-marking tracks: Available
Custom colour options: Available
Control systems: Advanced auto-levelling & user-friendly operation
