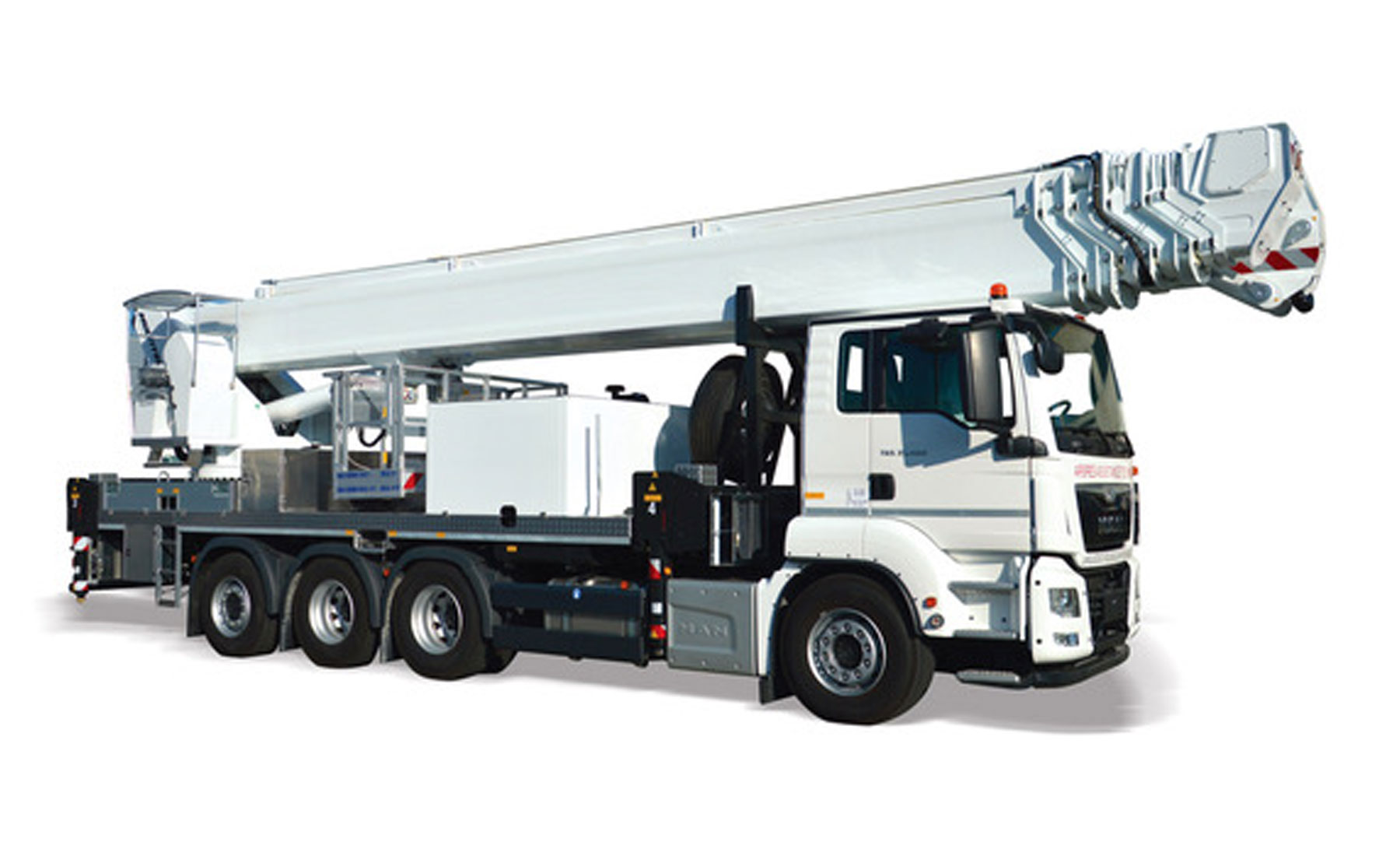

70m – MJ700
Description
The MJ 700 is one of Multitel Pagliero’s tallest and most advanced hybrid platform, offerings: a 70.2m working height and 36m outreach. Built on a 4 or 5-axle chassis, it’s designed for high-reach work in compact or low-emission zones.
With variable stabilisation from just 1.3m, it sets up safely in tight spaces. The hybrid system enables silent, fully electric operation using dual 80V lithium batteries, delivering zero emissions without compromising performance.
Operators can control electric mode, monitor battery status, and access system diagnostics from both ground and basket via an onboard display. A perfect mix of power, precision, and sustainability.
get an instant quote
Specifications
Working Height: 70.2m (230.3 ft)
Platform Height: ~68.2m (223.7 ft)
Maximum Outreach:
36.0m (118.1 ft) at 120kg
33.5m (109.9 ft) at 280kg
31.3m (102.7 ft) at 400kg
28.5m (93.5 ft) at 600kg
Cage Load Capacity: 120 / 280 / 400 / 600kg (264 / 617 / 882 / 1323 lbs)
Cage Rotation: 90° + 90° (Optional: 180° + 180°)
Turret Rotation: 360° continuous
Below-Ground Reach: Confirmed range not stated, but likely in the -10 to -15m range
Variable Stabilisation Width: From 1.3m on each stabiliser
Turret Rotation: 360° continuous or ±450°
Cage Rotation: 90° + 90° (Optional: 180° + 180°)
Extendable Jib: 21m reach
Below-Ground Reach: Up to -15.5m
Stabilisers: 7800mm spread
Truck Chassis: Volvo FM500 10×4 (5 axles) or similar
Gross Vehicle Weight (GVW): Approx. 42,000–44,000kg (based on class)
Truck Chassis: Volvo FM500 10×4 (5 axles)
Estimated GVW (Gross Vehicle Weight): ~42,000kg – 44,000kg (92,500–97,000 lbs)
Hybrid System: Dual 80V lithium batteries (210Ah each)
Battery Power: ~33kWh
Electric Motor: 20kW / 80V driving hydraulic pump
Full Open Cycle (Electric Mode): Up to 4 full lifts to 70m from rest
Recharge Options:
400V Mains: ~4 hours
Onboard Diesel Generator: ~5 hours (can recharge during operation)
Hybrid Diagnostics Screen: Accessible from both ground and basket — shows battery level, power draw, temps, inverter stats, and more
Silent Mode Operation: Yes
