43m – PB 43T
Description

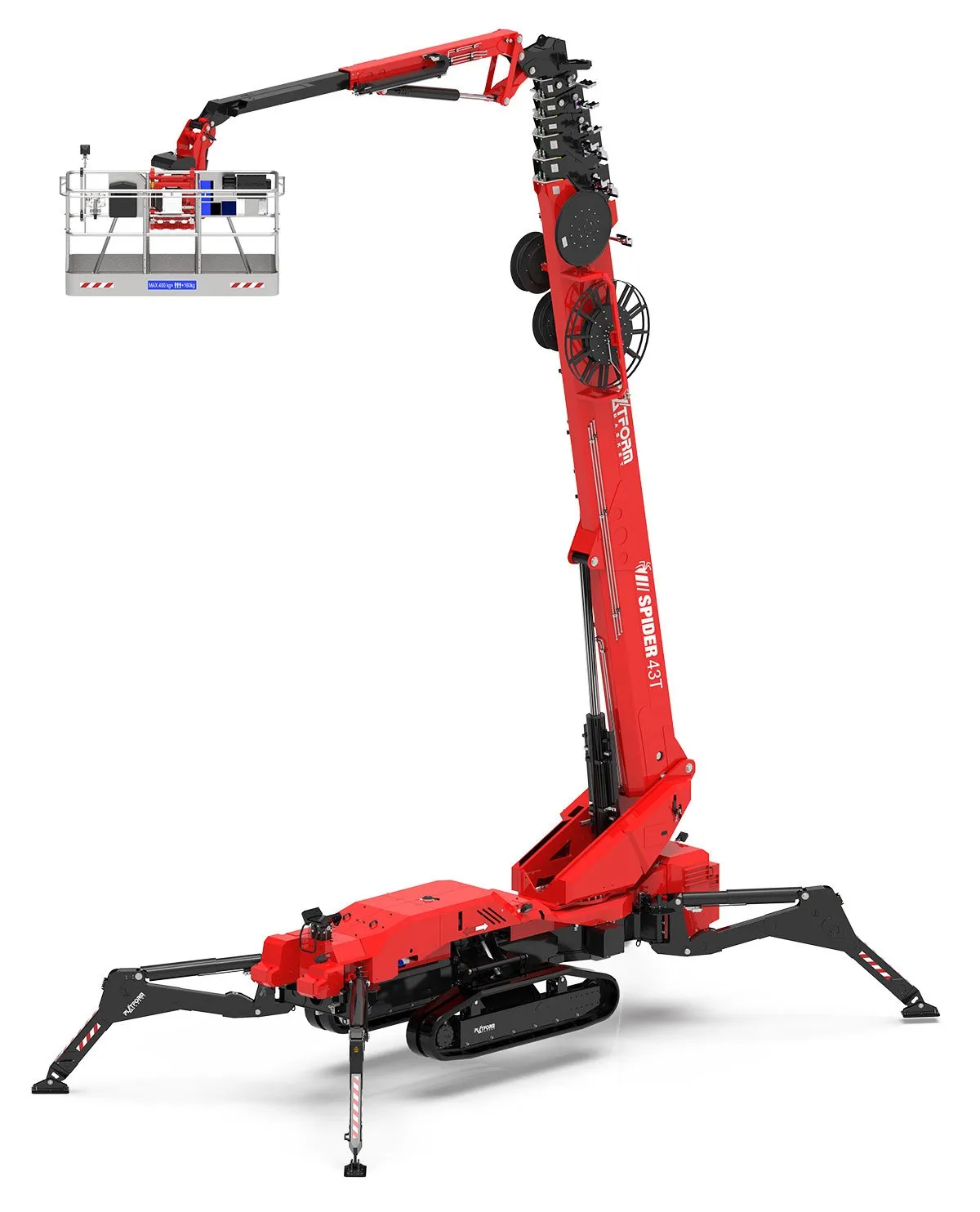

The Spider 43T is a high-altitude self-propelled tracked aerial platform engineered for serious height, reach, and operational safety. With a working height of 43.18 metres and horizontal outreach up to 17.33 metres, this model is purpose-built for demanding elevated applications in tree work, utilities, inspection, and maintenance.
Designed with a double telescopic articulated boom and an advanced stabilisation system, it delivers outstanding performance in both wide and narrow setup configurations. Its 400kg basket capacity and 360° continuous turret rotation ensure optimal flexibility for two-person teams with tools and equipment.
The Spider 43T is available in both standard diesel and ED hybrid versions. The hybrid setup includes a 48V lithium-ion battery, electric drive motor, and a quiet operating mode for indoor or low-noise environments. Operator control is smooth and simple with proportional radio remote control, onboard diagnostics, and a user-friendly display interface.
Whether you need reliable access for high-reach façade work or agile movement through confined sites, the Spider 43T combines rugged performance with cutting-edge features in a compact and transportable package.
get an instant quote

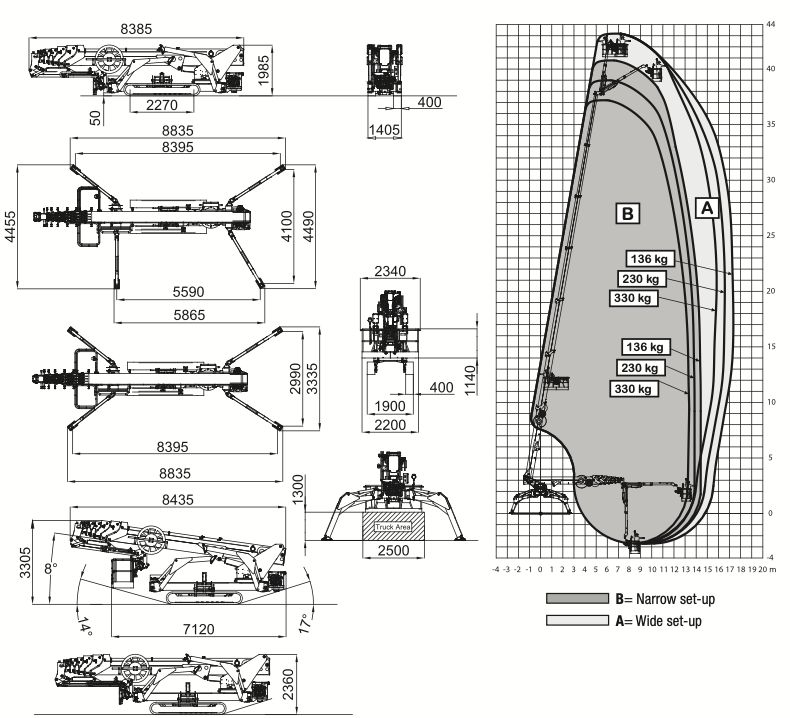

Specifications
Max working height: 43.18m (141.6 ft)
Platform height: 41.15m (135.0 ft)
Max side outreach: 17.33m (56.8 ft)
Basket capacity: 400kg (880 lbs)
Basket dimensions: 2.34m × 0.87m
Basket rotation: ±90°
Turret rotation: 360° (endless)
Stabilisation configurations:
-
Wide: 5.23m × 5.59m
-
Narrow: 4.01m × 7.80m
Tower articulation: Double telescopic articulated boom
Max horizontal inclination: 15° (27%)
Max side inclination: 17° (31%)
Drive speed: 1.5 km/h
Remote control: Radio with drive speed selector (fast/slow)
Diagnostic system: Onboard display
Operating weight:
-
STD: 12,430kg
-
ED: 12,570kg
Ground pressure (stowed):
-
STD: 6.16 kN/m²
-
ED: 6.23 kN/m²
Ground pressure (on stabilizers):
-
STD: 4.17 kN/m²
-
ED: 4.22 kN/m²
Max point load on one stabilizer:
-
STD: 92.6 kN
-
ED: 93.6 kN
Transport dimensions (closed):
-
Length: 8.46m (or 8.43m with basket removed)
-
Width: 1.41m
-
Height: 1.99m
STD version
-
Engine: Kubota D1803 diesel – 37 HP @ 2700 rpm
-
Electric motor: 380V – 15 CV / 11.2 kW
ED version (Hybrid)
-
Engine: Kubota D1803 diesel – 37 HP @ 2700 rpm
-
Electric motor: 24 Vdc – 6.7 CV / 48 kW
-
Battery: 48Vdc Lithium Ion, 200 Ah
-
Charger: Lithium ion charger – 100/50 Ah
Additional features:
-
Automatic stabilization and storage system
-
Proportional, intuitive electro-hydraulic control
-
Simple emergency lowering and maintenance access
-
Compact design with efficient outreach in both narrow and wide stabilisation setups
