25m – CMC S25F
Description

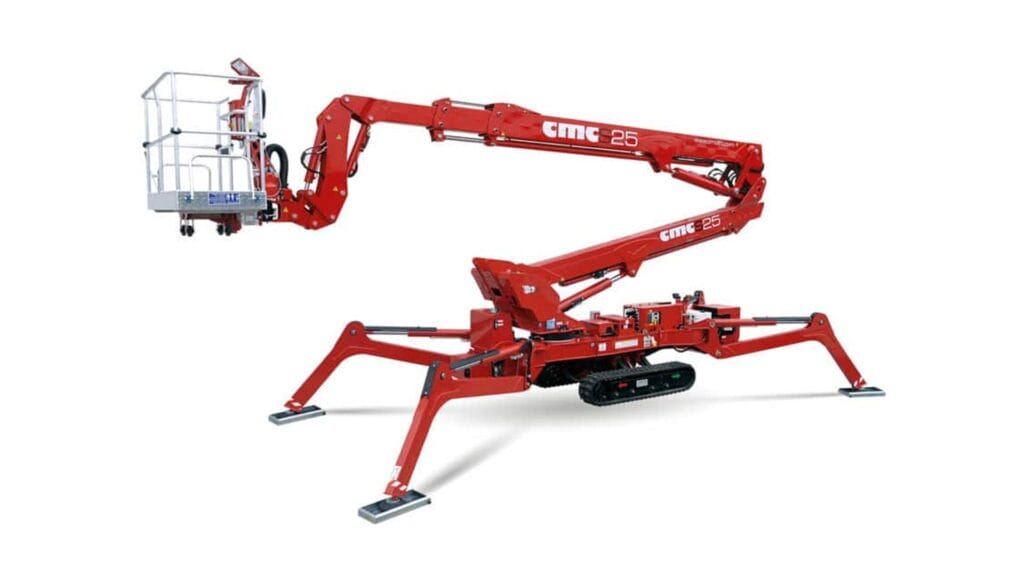

The CMC S25F Spider Lift from the Double Performance Series delivers outstanding height and outreach in a compact, transportable package. With a massive 25-metre working height and up to 14 metres of horizontal reach, it’s one of the most capable models in its class — designed for operators who need maximum performance without sacrificing mobility or setup flexibility.
This machine is engineered to handle challenging jobsite conditions, with the ability to work in negative reach up to -6.8 metres, four stabilisation zones for adaptability, and a ±200° rotating turret (400° continuous). The basket supports up to 230kg, rotates ±90°, and provides optimal reach for two-person operation.
Designed for ease of transport and setup, the S25F features a transport width of just 0.89 metres, allowing access through tight spaces. Its high ground clearance, wide stabilisation base, and durable tracked chassis make it ideal for everything from tree work and exterior building maintenance to utilities and infrastructure access.
get an instant quote

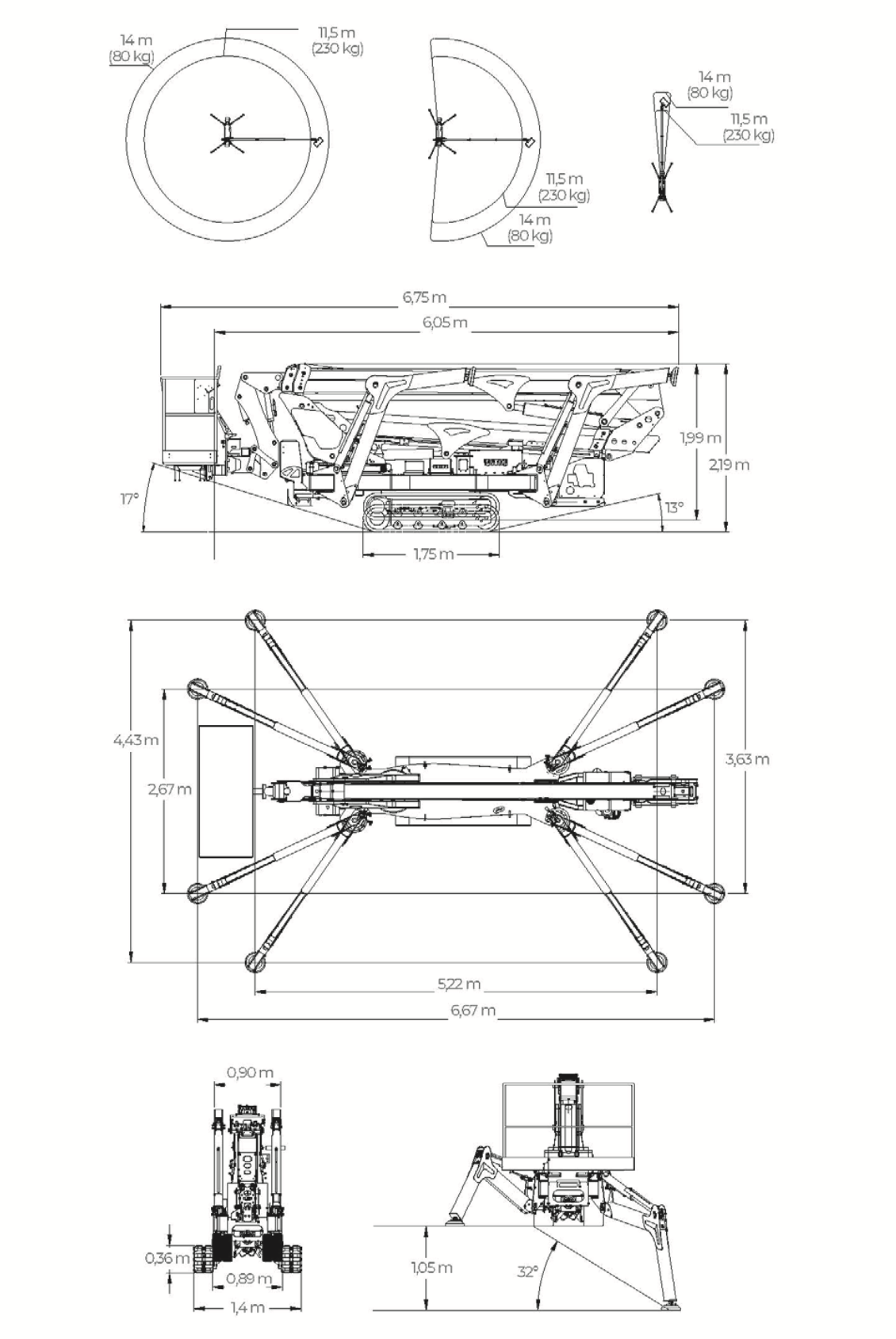

Specifications
Max working height: 25.0m (82.0 ft)
Max platform height: 23.0m (75.5 ft)
Max outreach with 80kg: 14.0m (45.9 ft)
Outreach with 230kg: 11.5m (37.7 ft)
Negative working reach: -6.8m (22.3 ft below ground)
Basket dimensions: 1.7m × 0.7m × 1.1m
Basket capacity: 230kg (2 operators)
Basket rotation: ±90°
Turret rotation: ±200° (400° continuous)
Stabilisation: 4-mode setup (based on outreach needs)
Total weight: 3,960kg
Transport length: 6.75m
Main chassis length: 6.05m
Transport width (retracted tracks): 0.89m
Track width (extended): 1.40m
Transport height (stowed): 1.99m
Max stabilisation footprint: 6.67m (length) × 4.43m (width)
Minimum ground clearance (chassis): 0.36m
Max stabilisation angle: 32°
Power configuration is not listed in the provided sheet, but typical for this series would include:
-
Diesel engine (Kubota or Hatz variants)
-
Optional electric or hybrid bi-energy setups
-
Proportional hydraulic controls
-
Full radio remote system for boom and track operation
Standard safety features and outreach management likely include:
-
Automatic outreach control
-
Emergency lowering system
-
Load monitoring system
-
Stabiliser auto-levelling
