20m – Multitel HX200EX (Non-Insulated)
Description

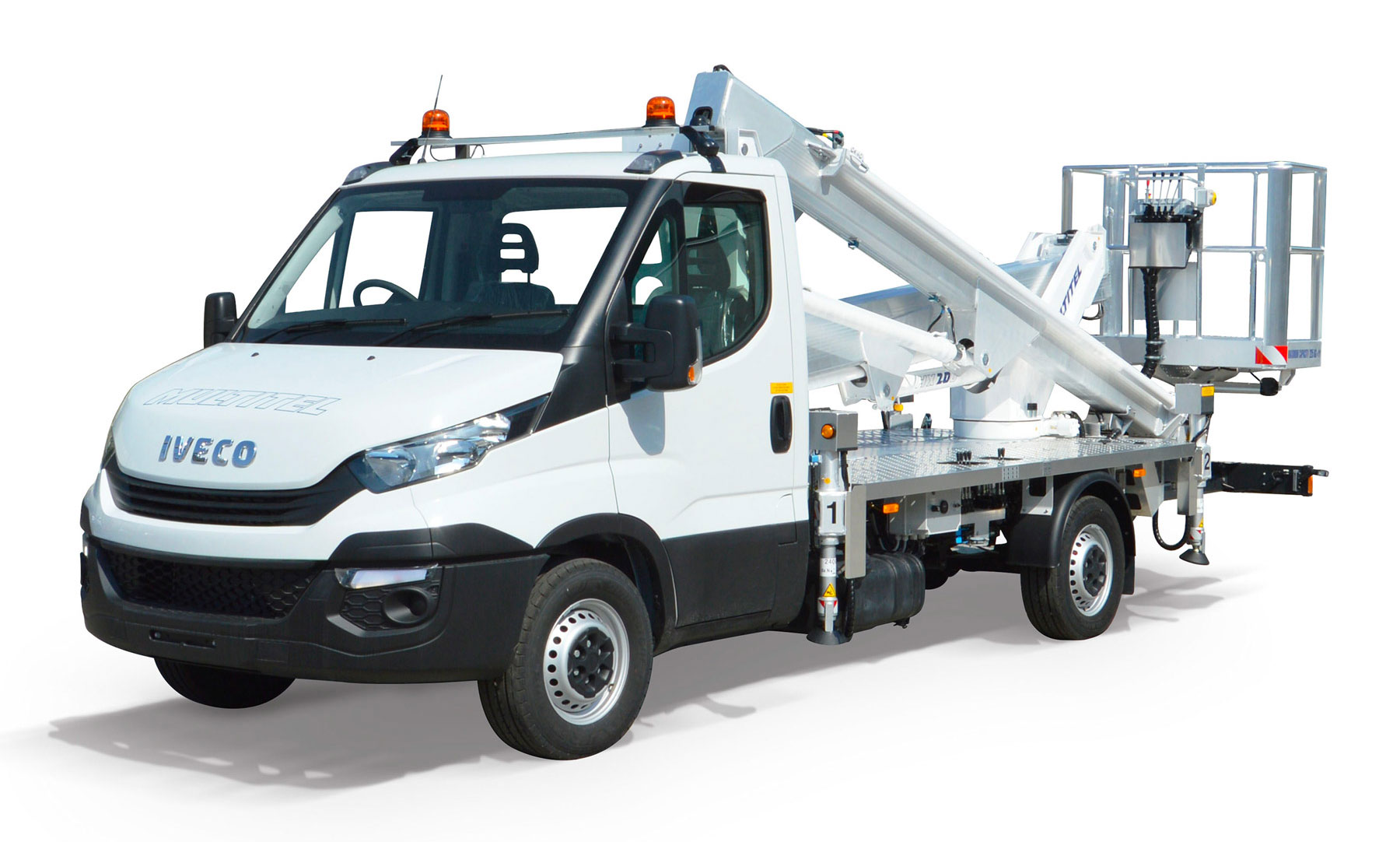

The Multitel HX200EX is a high-performance truck-mounted EWP built for safe, efficient work at heights up to 20 metres. Designed for mounting on a standard 3.5-tonne chassis, it offers excellent outreach of 9.6 metres and a full 230kg platform capacity, ideal for two operators plus tools.
This non-insulated model features a versatile articulated boom with telescopic extension, capable of tackling a wide range of tasks from facility maintenance and signage to lighting and exterior cleaning. Its compact design ensures ease of operation in urban areas, with a relatively narrow outrigger footprint and 400° turret rotation for maximum worksite coverage.
With a focus on reliability, stability, and smooth movement, the HX200EX is a trusted workhorse in fleets across Europe and Australia. It offers a professional-grade solution for operators needing dependable elevated access without insulation requirements.
get an instant quote
Specifications
Max working height: 20.0m (65.6 ft)
Platform height (approx.): 18.0m
Max horizontal outreach: 9.6m (31.5 ft)
Basket capacity: 230kg (507 lbs)
Slew rotation: 400°
Boom design: Articulated with telescopic sections

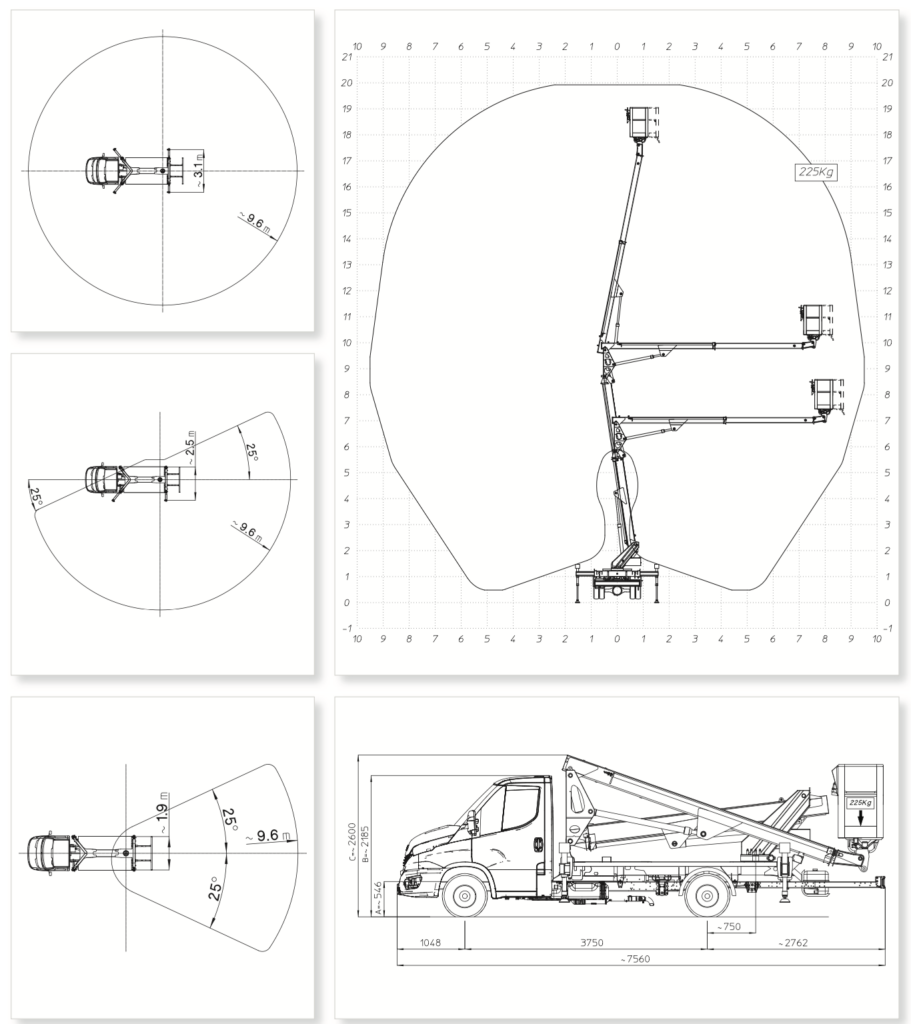

Outrigger spread: Approx. 3.9m (narrow) to 5.8m (wide) based on diagram views
Chassis requirement: 3.5T truck (standard light-duty truck license class)
Vehicle length (overall): 7.64m
Wheelbase: 3.75m
Vehicle height (travel mode): ~3.0m (estimated from diagram)
Basket position height (travel): ~1.1m from ground (based on diagram scaling)
Basket size: Not specified on this sheet (typically ~1.4m × 0.7m for this class)
Power source: Truck PTO (diesel engine-powered hydraulic system)
Control system:
-
Base and basket controls
-
Proportional electro-hydraulic system (standard on Multitel)
-
Likely includes emergency lowering and start/stop
Insulation: Non-insulated (not suitable for live-line work)
Safety systems: Not listed, but typically includes outrigger interlocks, boom interlocks, and emergency descent
