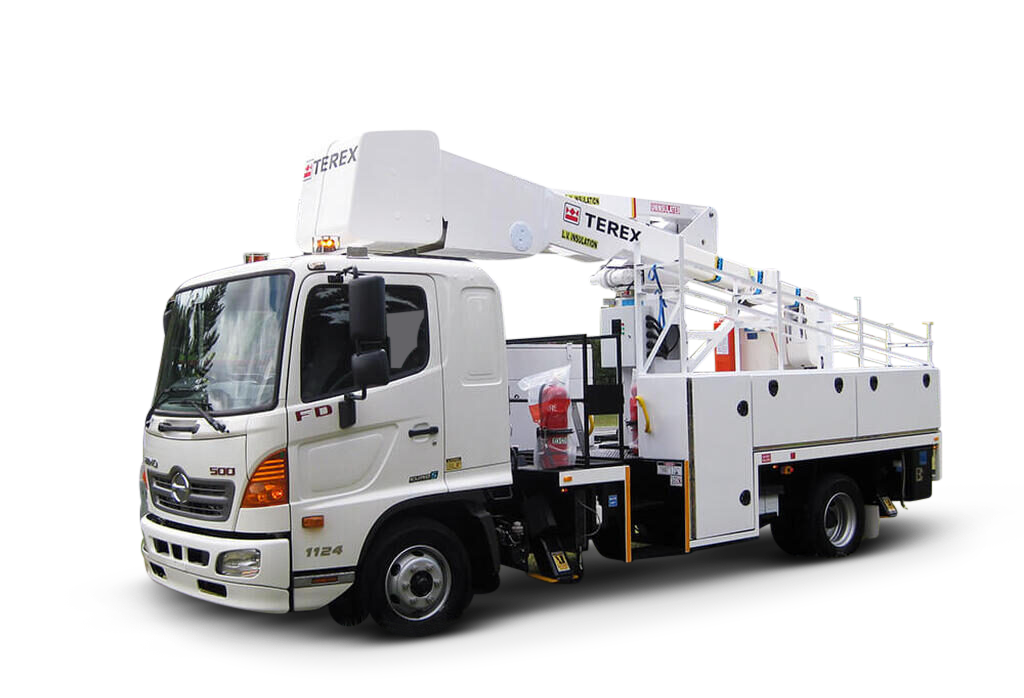

14m – Terex Insulated EWP Truck / Boom Insulation
Description
The 33kV insulated elevated work platform provides safety and performance for high-voltage work, offering two configurations — with or without outriggers. With a working height of 14.4m and a horizontal reach of up to 9.0m, it provides flexibility and stability for a range of jobs. The platform supports a 181kg capacity, ensuring reliable operation, and the insulated basket liner adds an extra layer of safety for live line work.
get an instant quote

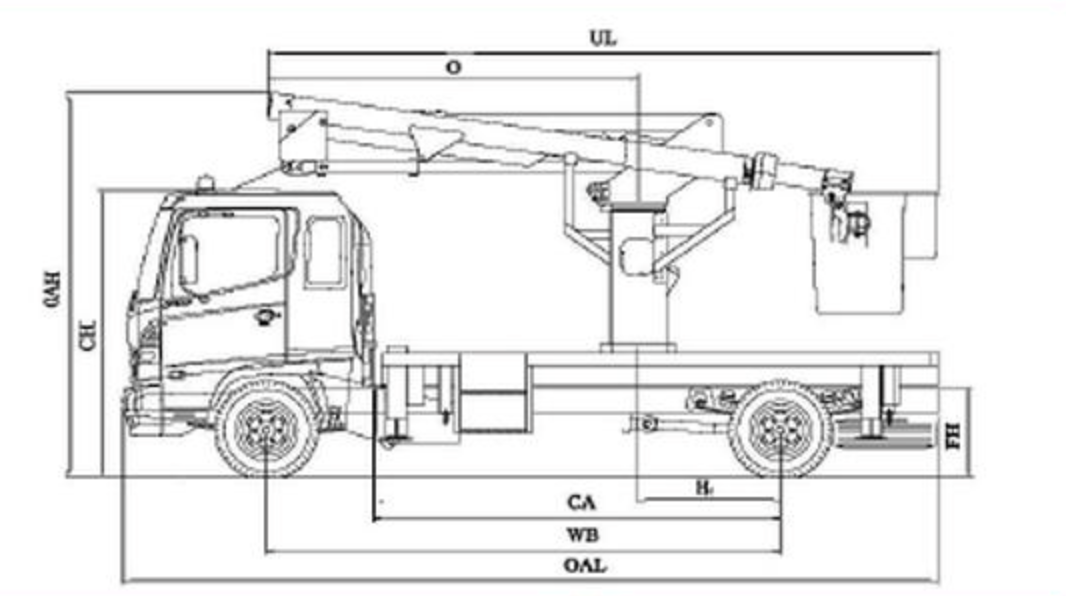

Specifications
Working height (with or without outriggers): 14.4m (47.2 ft)
Bottom platform height: 12.4m (40.7 ft)
Horizontal reach (with outriggers): 9.0m (29.5 ft)
Horizontal reach (without outriggers): 8.1m (26.6 ft)
Platform capacity: 181kg (399 lbs)
Material handling: Not applicable
Boom insulation rating: 33kV
Basket liner insulation rating: 22kV
Outriggers: Optional configuration
Gross Vehicle Mass (GVM): 11,000kg (24,251 lbs)
Axle configuration: 4×2
Drive type: Wheeled (2WD)
Transport configuration: Truck-mounted EWP
Fuel type: Diesel
Boom type: Insulated, standard telescopic
Configuration options: Available with or without outriggers
Operational focus: High-reach, insulated utility work
